SMARTmark® Fiber Laser Marking System
Models: 20W, 50W
The Industrial, Automation-Ready Solution for Permanent Traceability
Providing an industrial solution for product identification and traceability, SMARTmark® Fiber Laser Marking Systems allow manufacturers to mark or engrave serial numbers, bar codes, 2D Data Matrix, and graphics on the widest variety of materials, including metals, plastics and ceramics.
With five different power levels available, this laser can meet difference application needs regarding depth, speed, and material, including cutting and welding.

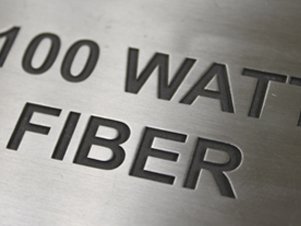

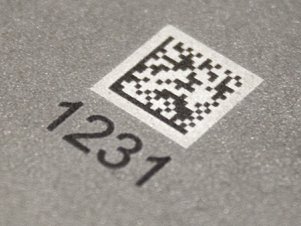

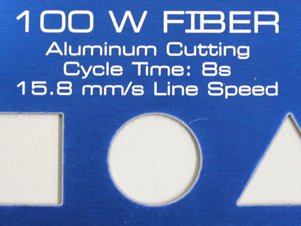

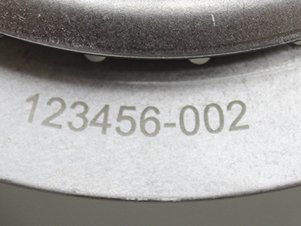

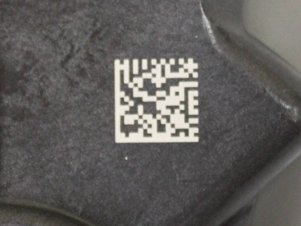

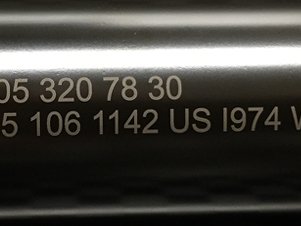

Sample Mark Gallery
MECCO is known for the high quality of the marks we produce, and these samples from SMARTmark® Fiber Lasers showcase some of the common applications that highlight its capabilities. Fiber lasers can be used for a wide variety of applications, from industrial traceability to branding, on materials such as steel, copper, aluminum, plastic, ceramic, and brass.
- Watch videos of the Fiber Laser marking machine.
Request Sample Marking
Don’t see what you’re looking for? To help you find the right marking equipment for your project, MECCO offers free sample marking so that you can see what the mark would look like on your material.
Contact us to request a sample on your parts
Models
MECCO’s Fiber Laser machine is available in 20W, 50W, 100W, and 200W, giving it the capability to mark or engrave the widest variety of materials, including steel, titanium, aluminum, copper, ceramics, and plastics. Ranging from an energy level of 0.5 mJ to a maximum energy of 1mJ, each system is designed to deliver the precise power needed for your application.
Contact a member of our team today who can guide you to the best solution based on your specific marking goals.
SMARTmark Fiber Laser Marking System Features
- Marks widest variety of materials, including steel, titanium, aluminum, copper, ceramics & some plastics
- 100,000+ hours of laser life, reducing costs and production downtime
- Small 19" rack mount footprint makes it easy to integrate with other equipment and existing assembly lines
- 111.1mm square mark field (other sizes available)
- No consumables and minimal maintenance help reduce operating costs
- Mount laser in any orientation
- Air-cooled 20W-200W models
- Real-time visible live pointer for previewing your mark
- Higher beam quality than flash lamp, diode pumped and vanadate, resulting in a high quality mark
- Integrated safety shutter
- 2-Year equipment warranty -- parts and labor
- Laser Customer Success Plans available for preventative maintenance
Advanced Features for Integrators:
- LEC embedded controller allows for stand-alone mode operation without a PC
- Dual E-Stop channels
- Dual door interlock channels
- Enhanced diagnostics with LCD Display to notify operator/PLC of system status
- RS-232 and Ethernet TCP/IP Communication
- Remote and COM Interface for dynamic and external control of the laser
- EtherNet/IP & Modbus or Profibus Communication
System Technical Specifications
|
Category: |
Spec: |
|---|---|
|
Laser Type |
Fiber, Ytterbium |
|
Output Power |
20W, 30W, 50W, 100W, or 200W |
|
Power Requirements |
110/220 VAC, 10A, 50/60Hz |
|
Wavelength |
1064nm |
|
M2 |
<1.4 |
|
Operation Mode |
Pulsed |
|
Pulse Rep Rate |
20-500 kHz depending on model |
|
Cooling |
20W-50W: Air Cooled |
|
Scanning Method |
XY galvanometer |
|
Rail Weight |
20 lbs |
Rail Dimensions |
20W-100W: 19.736" x 5.188" x 4.961" 200W: 22.64" x 4.96" x 5.51" |
|
Cable Length |
3 meters |
|
Controller Dimensions |
19.486" x 5.250" 17.275" |
|
Accuracy |
3.5 μm across field |
|
Max Line Speed |
3,000 mm/sec using 160mm lens |
|
Controls |
LEC Industrial computer-based controller |
|
Communications |
Ethernet TCP/IP, EtherNet/IP™, PROFINET, Modbus TCP, RS232 |
|
Approvals |
CE |
|
Warranty |
2 Years |
|
Documentation |
USB Flashdrive with Operator’s Manual & Integration Guide |
Lens Configurations
20W, 30W, 50W Lens Options
|
Lens |
Marking Field |
Focal Length |
|---|---|---|
|
160mm |
111.1mm x 111.1mm (4.4” x 4.4”) |
183mm (7.2”) |
|
254mm |
177.1mm x 177.1mm (6.97” x 6.97”) |
278mm (10.94”) |
|
330mm |
230mm x 230mm (9.1” x 9.1”) |
388mm (15.28”) |
|
420mm |
336.1mm x 336.1mm (13.2” x 13.2”) |
477mm (18.78”) |
100W & 200W Lens Options
|
Lens |
Marking Field |
Focal Length |
|---|---|---|
|
163mm |
123mm x 123mm (4.8” x 4.8”) |
206.3mm (8.12”) |
|
255mm |
203.5mm x 203.5mm (8” x 8”) |
316mm (12.5”) |
Laser Marking Software
SMARTmark lasers all use WinLase laser marking software with unique MECCO options configured to your needs.
We also offer custom Graphical User Interfaces to help ensure that ease-of-use, automation, database integration and vision inspection meet the needs of your project.
SMARTmark Fiber Product Resources
- Software Files
- Manuals
- Integration Guides
- Engineering Drawings
- Troubleshooting Videos
- Software Training Videos
Go To Downloads
Laser Product Options
-
OEM Models
An OEM (or U-Model) is the core product for making traceability marks on your parts. It consists of the laser rail with controller and is the choice for machine builders to integrate marking into a larger turnkey solution. -
Enclosures & Workstations
Lasers can be added to standalone, configurable enclosures that are designed to meet CDRH Class 1 safety regulations. Available in a range of sizes to meet the requirements of your parts. Or choose an all-in-one enclosed laser workstation, LightWriterTM by MECCO. -
Turnkey Solutions
SMARTmark® Laser Marking Systems are configurable to your part and process automation requirements. With our Turnkey Laser Solutions, we can design and manufacture an enclosure to meet your needs in part handling, vision, software and database integration.
Integrating a Total Traceability Solution
CASE STUDY: Honeywell Aerospace
When part-marking inefficiencies began to inflate production costs, this aerospace components manufacturer transitioned to a new laser marking system in order to successfully overcome five big challenges.
